Hot Water Boiler
COMMANDER®

YOUR COST-EFFICIENT AND COMPACT UNIT IN CHARGE OF HEATING YOUR SPACE

Simoneau introduces the COMMANDER®. A UL/ULc packaged or field erected watertube series designed with your space in mind, and low footprint without sacrificing power.

COMMANDER® is available in five (5) sizes from 100-200 HP for steam (low and high pressure steam) or hot water applications.

Technical Data Sheet

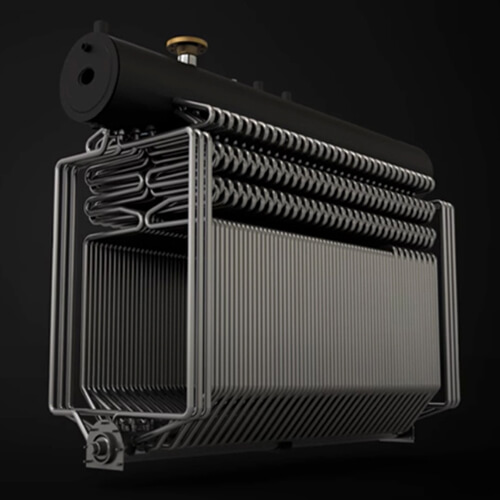

ROBUST O-TYPE CONSTRUCTION
ROBUST O-TYPE CONSTRUCTION

Tangent staggered tube configuration. Flexible arrangements of the tubes allows for maximum resistance against thermal shocks.

EXCELLENTE ISOLATION
EXCELLENT WALL INSULATION

Front and rear wall made with high-temperature cerramic wool.

DOWNCOMERS
DOWNCOMERS

Innovative internal downcomers configuration for steam boilers located at the front and rear walls.

PACKAGED OR FIELD ERECTED
FAST ONSITE ASSEMBLY

Requires no welding. Tubes are attached to the drums using ferrules.

INTERNAL ENVELOPPE AND OUTER HEAVY STEEL CASING
INTERNAL ENVELOPPE AND OUTER HEAVY STEEL CASING

Protects both the boiler and external surroundings.

LOW FOOTPRINT
LOW FOOTPRINT

Accomodates small and hard to reach locations.

  • Up to +5” water column gas side pressure
  • No refractory cement usage
  • High thermal shock resistance
  • Factory tested pressure parts
  • Minimum 1.5’’ diameter tubes
  • SA-178 grade “A” material
  • 11 gauge and reinforced steel panels
  • Scratch-resistant insulated jacket panels and powder coated
SPECIFICATIONS
Hot Water (low and high temperature) Generator Other pressures available upon request
Water/Glycol Mixture and Thermal Fluid Heater15 to 650 psig
Up to 66.95 MM Btu/hrASME Code Compliant
Registered at the National Board (NB)
BURNER MANAGEMENT
COMBUSTIONLarge selection of adaptable combustion systems
CONTROLSFull range / choice of controls
FUEL SELECTIONAvailable as natural gas straight #2 oil and alternative gases
ECO CHART
EMISSIONSNOx emissions as low as 9 ppm are available on straight gas burners.
SOURCINGLocal sourcing of material
