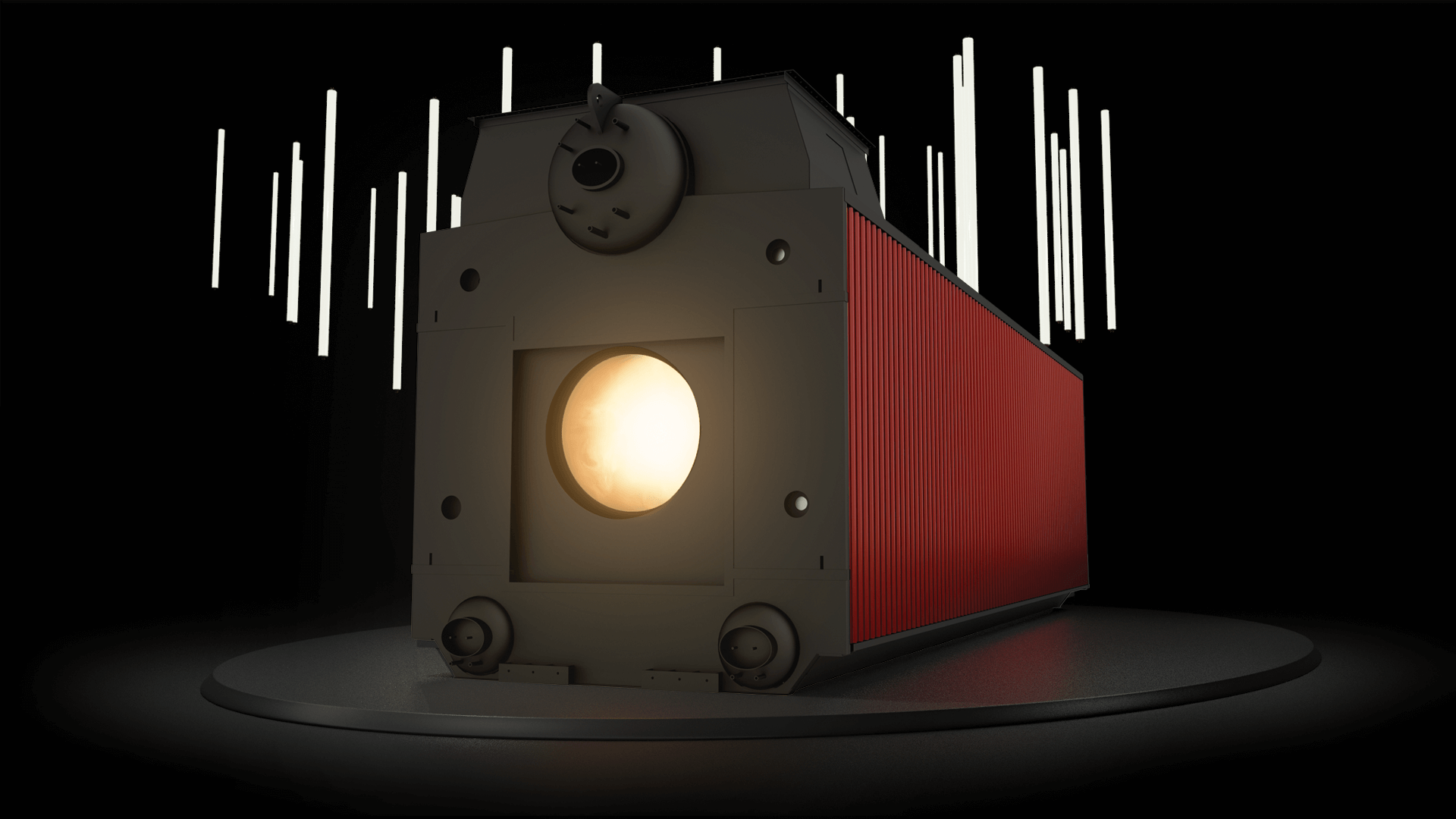

A-TYPE BOILER

WELL BALANCED CONSTRUCTION FOR MAXIMUM INDUSTRIAL CAPACITY

The A-Type watertube steam boiler, with centered steam and two lower mud drums, offers a symmetrical and well balanced design. This configuration generates increased performance of up to 250,000 PPH.

The A-Type boiler design offers a large volume furnace ending on two convetion zones, one on each side of the furnace. Optional open bottom furnace is well suited for cogeneration and solid fuel firing.

Technical Data Sheet
  • Reliable source of high quality, dry saturated steam (up to 99.9%)
  • Gas tight membrane waterwall
  • Boiler system components for maximum control of operation
  • Ease shipping capabilities by road or train with well balanced weight distribution
  • Indoor or outdoor installations
  • Excellent long-term reliability to meet industrial and utility applications
  • Open-bottom furnace fitting a variety of combustion systems
SPECIFICATIONS
Watertube Steam BoilerUp to 250,000 PPH (Higher Capacity Upon Request)
Symetrical ConfigurationExtensive Capacity Range
Superior Steam QualityLow Maintenance Costs
Up to 1500 psigASME Code Compliant
Registered at the National Board (NB)
BURNER MANAGEMENT
COMBUSTIONLarge selection of adaptable combustion systems
CONTROLSFull range / choice of controls
FUEL SELECTIONAvailable as natural gas, #2 oil, biogaz and alternative gases
ECO CHART
EMISSIONSMeets or exceeds NOx emission standards
SOURCINGLocal sourcing of material
